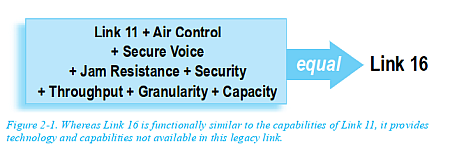

Link 16

Link 16

Tactical Data Link specified in the Message Standard for Link 16 (MIL-STD-6016 series)

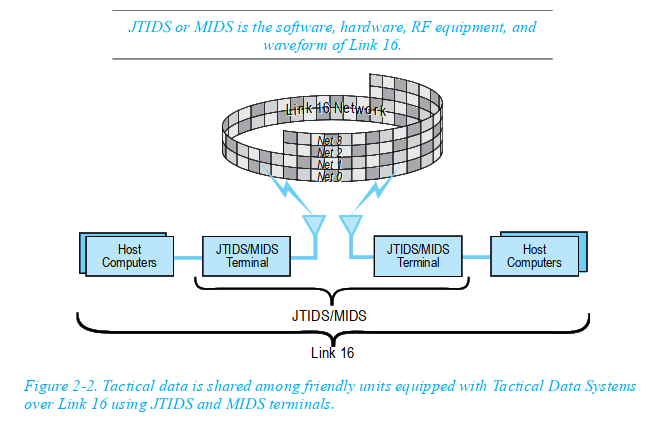

Link 16 Terminal

JTIDS or MIDS terminals encompass software, hardware and RF (radio) equipment which is capable of generating high-capacity, secure ant anti-jam waveforms.

Link 16 J-series Messages Structure

J-series message format uses labels and sub-labels.
The J12.6 Target Sorting message e.g: 'J' indicates Link 16;
'12' is the label; and '.6' sub-label.

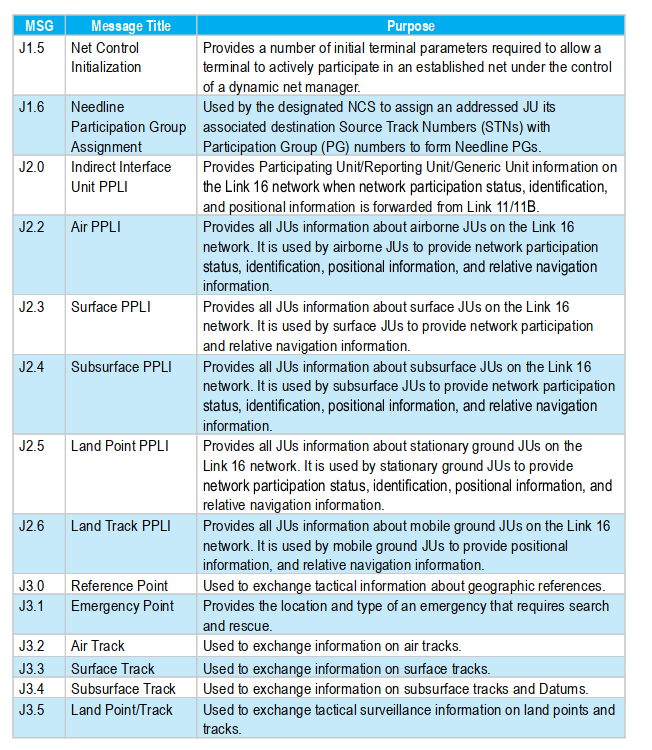

J-series example
